Strong points

Head’s opening through hydraulic cylinder (opening safe system on posts)

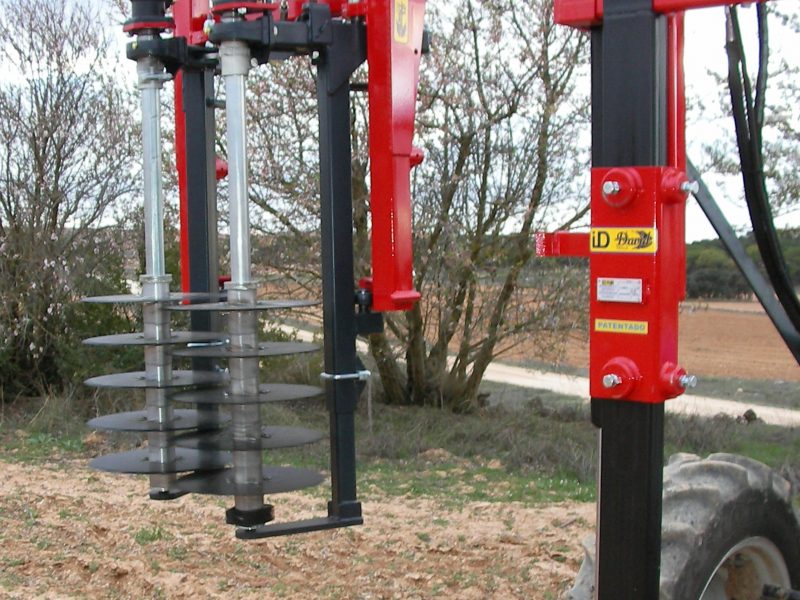

Bilateral cutting head (allows unraveling the stretched wires that could be cut from the head)
“Pradines” Boron steel cutting discs
Equipment entirely hydraulic driven (possibility to have different movements simultaneously)
Anti-shock security fuse
Side security rod
Pendulare suspension through double spring system

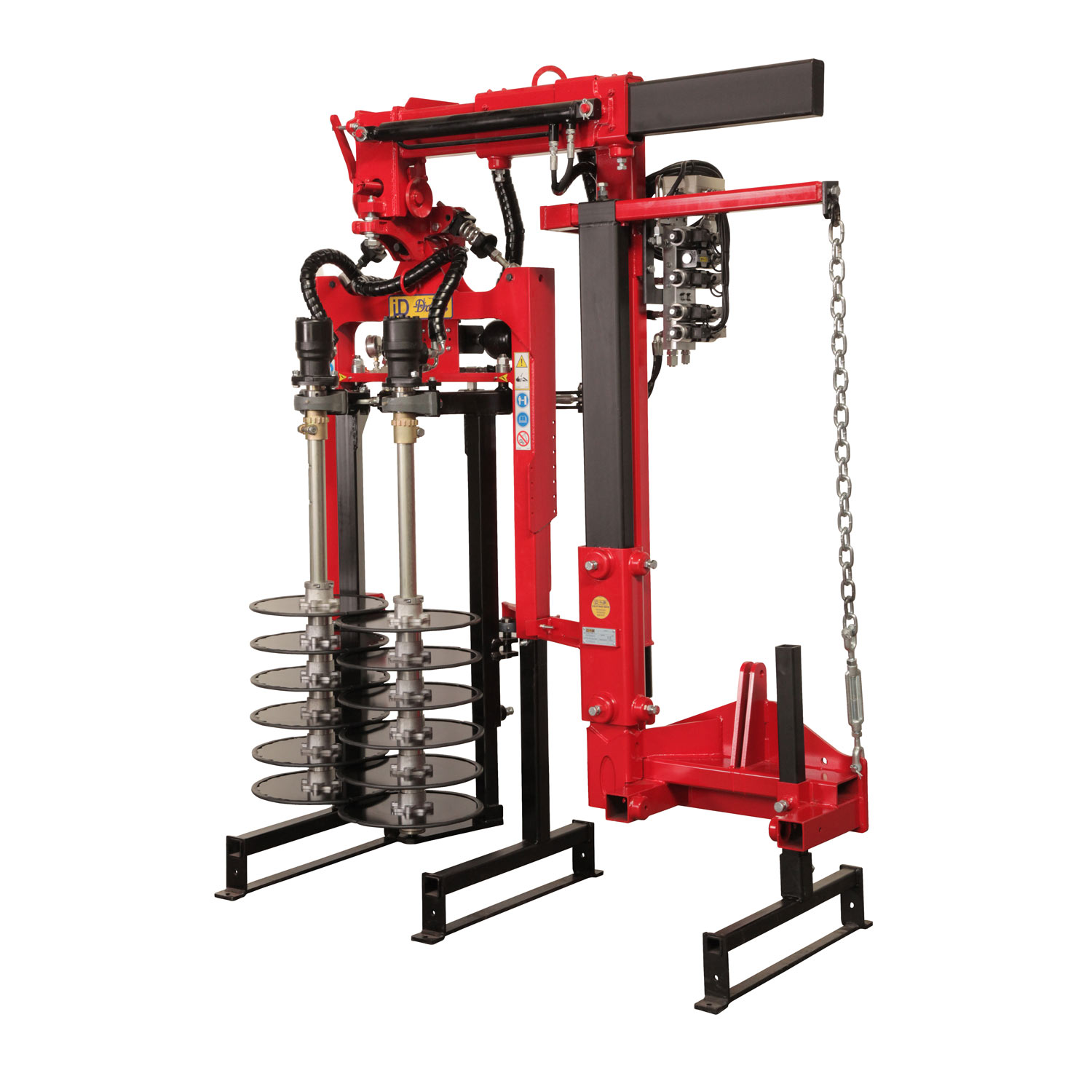

General description

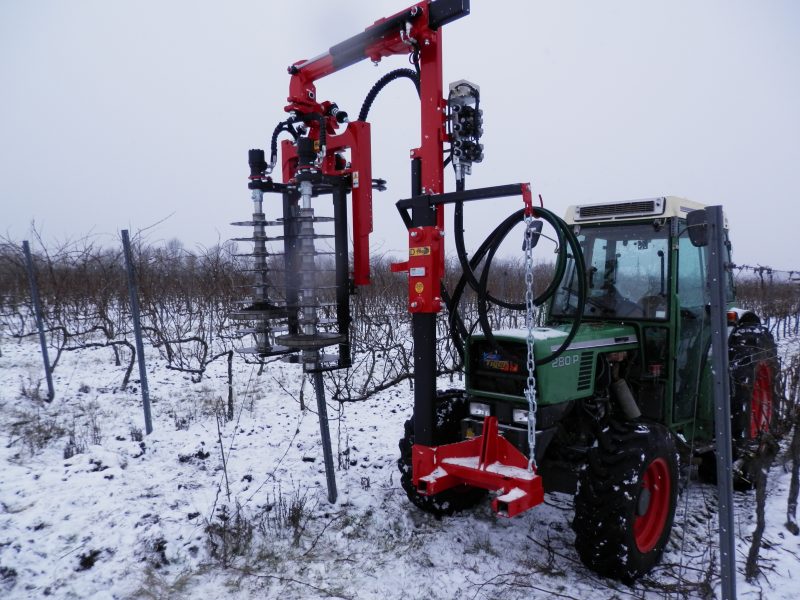

Machine suitable for pre-pruning, chopping and disposal of branches between branches. The cutting discs work between the wires and open the way to the passage of the posts through a switch installed on the control box. Its front mounting on a min. 60 HP tractor offers a high visibility and keep a constant vertical inclination of its cutting head through through an exclusive pendular suspension sytstem, that follows the ground. It is completely hydraulic driven and controlled by an electrical control unit provided with full functiones.

More information

Technical information

Standard equipment

  • Electric controls in cabin
  • Anti-shock security fuse
  • Regulation disc rotation speed
  • Hydraulic lifting
  • Hydraulic extension
  • Opening of cutting head by an oleopneumatic cylinder
  • Pendular suspension by means of a double spring
  • Boron steel cutting discs
  • Storage foot
  • Adaptable standard plate to tractor (frontal)
  • Lateral support rods
Reference   Description X Pair of plain discs L W H
mm Hp Kg  mm mm mm
BASIC-P-5 Pre-Pruner BASIC PENDULAR 485 5 80 590 1640 590 2090
BASIC-P-6 585 6 80 600 1640 590 2090
BASIC-P-7 685 7 80  610 1640 590 2090
BASIC-P-8 785 8  80  620 1640 590 2090
BASIC-P-9 885 9 80 630 1640 590 2090
BASIC-P-10 985 10 80  640 1640 590 2090

Some accesories

Hydraulic power unit 80L with cardan

Pair of vine shoot lifters

   Pair of plain discs

Hydraulic tendril cleaner

Triple-pointed for coupling the machine to 3 PH

Counterweight box
