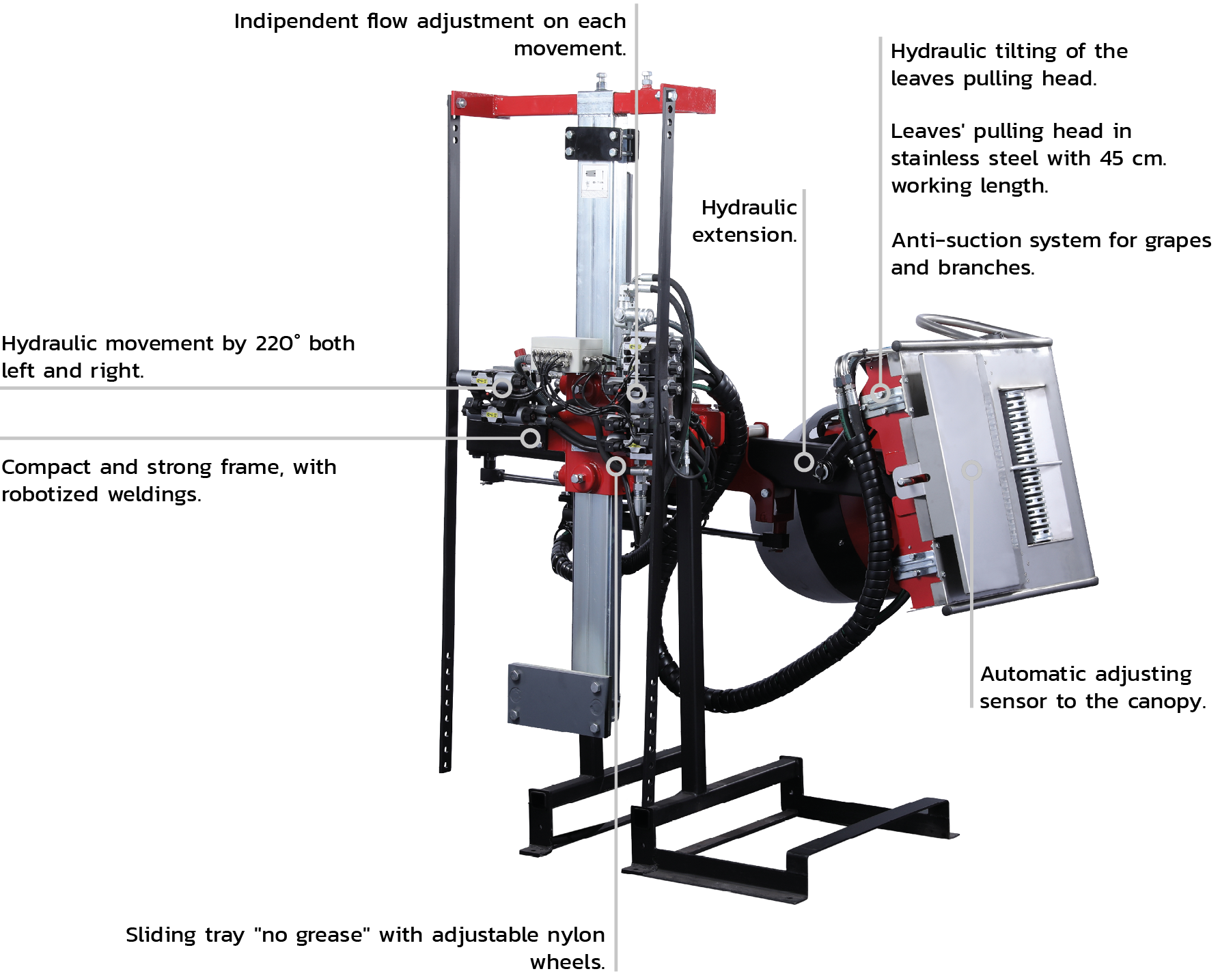

Strong points

Telaio robusto, compatto con saldature a robot
Inclinazione idraulica della testata defogliatrice
Sensore di aggiustamento automatico alla pianta
Testata defogliatrice in acciaio inossidabile con 45 cm di frangia di lavoro
Sistema anti suzione di sarmenti e grappoli
Estensione idraulica
Posizionamento idraulico a 220° sia a destra che sinistra
Regolatore di portata indipendente per ogni movimento
Tubi scorrimento senza ingrassaggio mediante cuscinetti in nylon regolabili

General description

Machine for vineyards front mounted with standard attachment, suitable to remove leaves all over the grapes without damaging it through a leaf remover head equipped adjustable through canopy’ sensor. The head automatically approaches and keeps itself constantly close to the vegetation, swallows the leaves and thanks to the absence of cutting knives it is possible to work from the flowering until the harvest without any damage risk for the grapes. This working process takes usually place in the shadow faces of the espaliers, so that the machine can be hydraulically reversed which allows to choose the face of the espalier to “leaf-removing” indipendently from tractor’s position on the row. Normally working speed can vary from 3 to max. 7 km/h.

More information

Technical information

Standard equipment

  • Electric controls in cabin
  • Stainless steel leaf remover head 45 cm work in strip
  • Independent flow regulators for each movement
  • Hydraulic lifting
  • Hydraulic extension
  • Leaf-removing head hydraulic inclination
  • Hydraulic positioning of 220 ° left right
  • Springs set for accurate adjustment
  • Automatic crop distance’ adjustment sensor
  • Storage foot
  • Adaptable standard plate to tractor (frontal)
  • Lateral support rods
Reference   Description X Y L W H
Hp Kg mm mm  mm mm mm
DHR-S Frontal reversible leaf remover

COMPACT

50 350 Min: 700 Max: 1150 1390 930 1300 2060
DHR-M Frontal reversible leaf remover

STANDARD

50 360 Min: 900 Max: 1350 1590 930 1300 2060
DHR-L Frontal reversible leaf remover

WIDE

50 370 Min:1200 Max: 1650 1890 930 1300  2060

Some accesories

Hydraulic power unit 80L with cardan

Hydraulic power unit 60 L to 3 points

Alternative cutting bar with motor

Front coupling part to tractor
