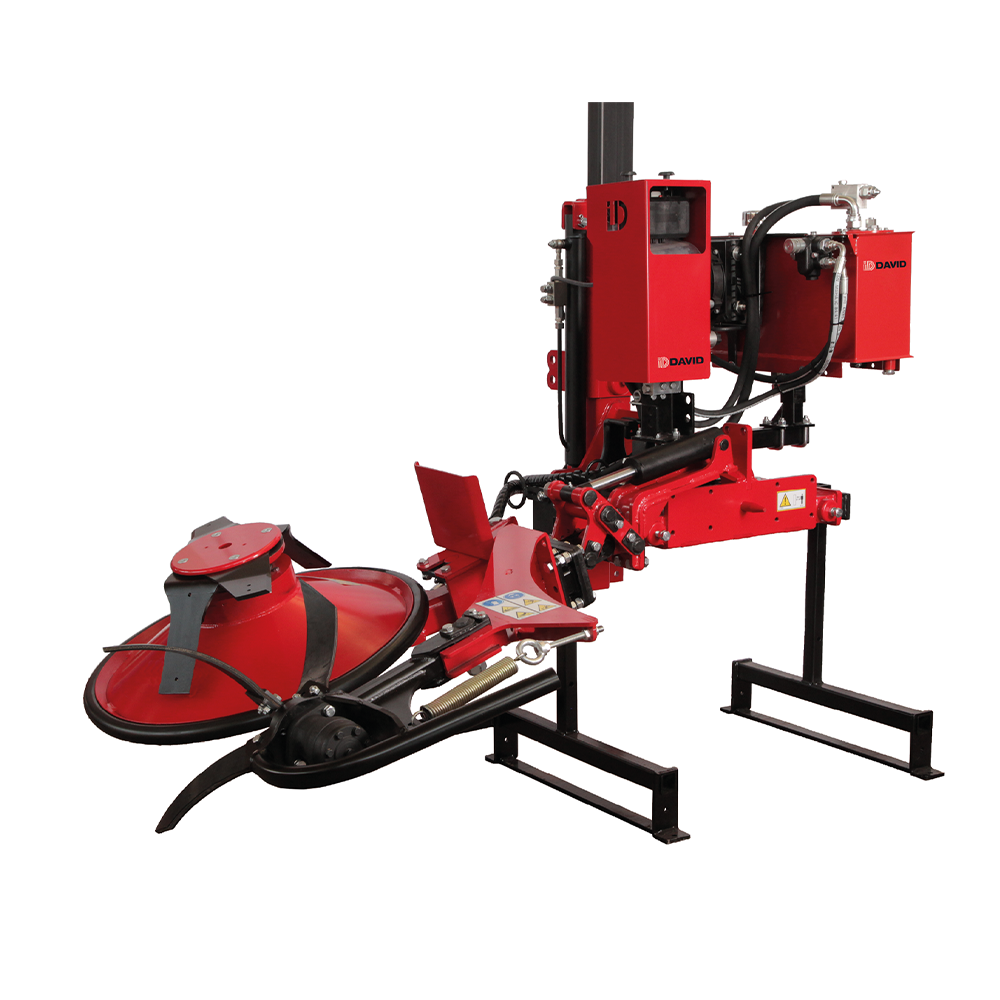

Very high-tech machine, coupled to the front of the tractor and designed to blunt and trim olive to skirt of super-hight density plantation to avoid the loss of olives during harvesting. Its exclusive branch feeder system allows you to work at high speeds with excellent cut quality. The working speed is usually 3 to 6 km/h.

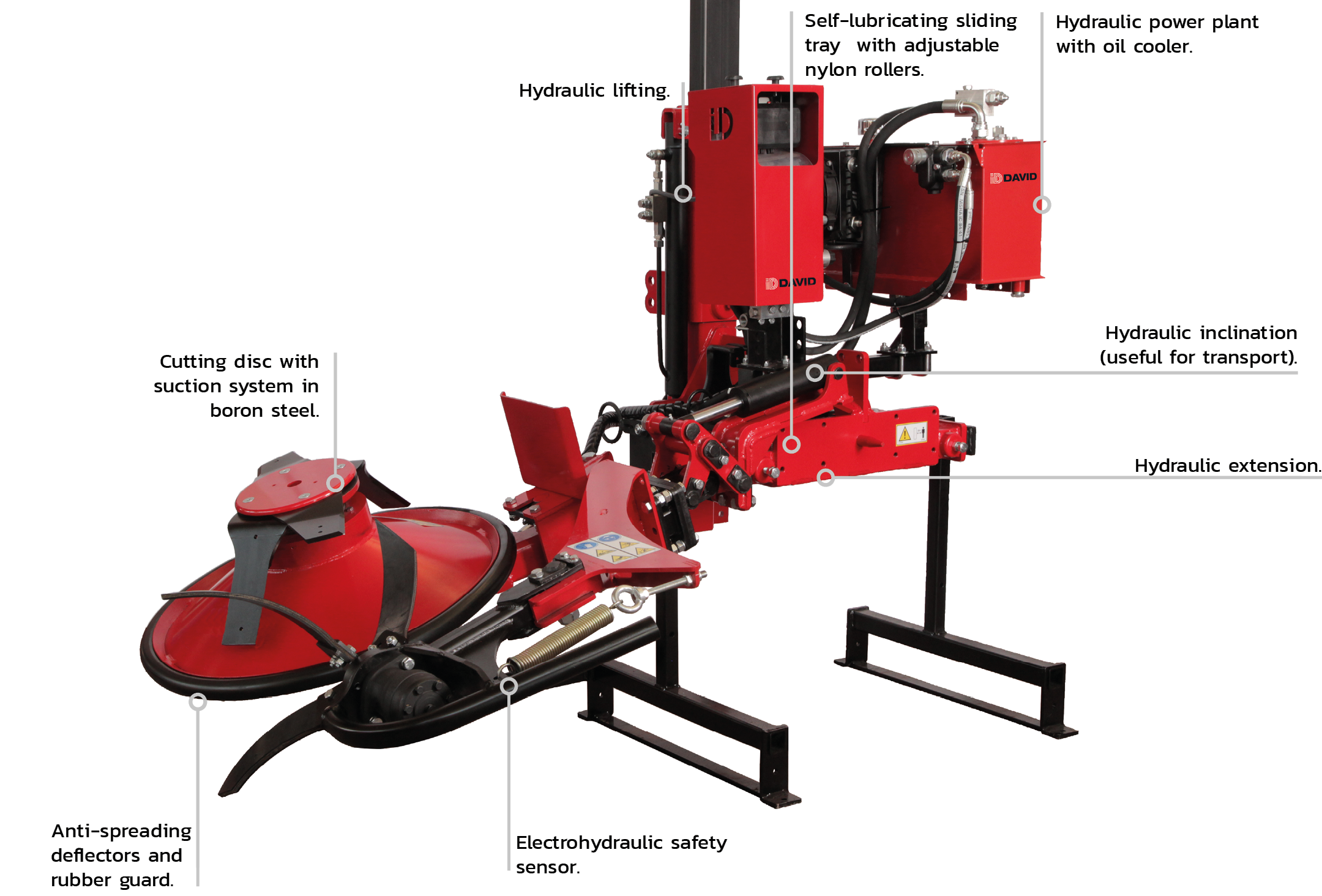

Strong points
Hydraulic lifting
Hydraulic and transport inclination
Rubber guard
Cutting disc with suction system in boron steel
Electrohydraulic safety sensor
Strong frame and robotic welding
Sliding tray “no grease” with adjustable nylon wheels
Technical information
Standard equipment
- Electric controls in cabin
- Anti-shock protection
- Feeder hydraulic speed regulator
- Hydraulic inclination
- Hydraulic extension
- Hydraulic lifting direct to the tractor
- Cutting discs with suction system in boron steel
- Adjustable sensitive sensor
- Independent hydraulic power unit 50L (C32) with oil cooler
- Storage foot
- Adaptable standard plate to tractor (frontal)
| Reference | Description | Diameter Discs | Hydraulic functions | Movements | ||||
| Nº / mm | Nº | Type | Nº | |||||
| PFO-1-D | Simple PFO pruner | 1
Ø600 |
5 | Cut, extension, lift, tilt, in row weeder retraction |
4 |
|||
| PFO-2-D | Double PFO pruner | 2
Ø600 |
7 | Cut, Extension, Lift, Right tilt, Left tilt, right in row weeder retraction, left in row weeder fold |
6 |
|||
| Reference | A | B | C | H | w | L |  |
 |
||||
| mm | mm | mm | mm | mm | mm | HP | Kg | |||||
| PFO-1-D | Min: 1265 Max: 1585 |
– | Min: 645 Max: 1145 |
1660 | 1225 | 1250 | 50 | 510 | ||||
| PFO-2-D | – | Min: 2530 Max: 3170 |
Min: 645 Max: 1145 |
1660 | 1225 | 1760 | 50 | 695 | ||||
Some accesories
Front coupling part to tractor
Triple-pointed for coupling the machine to 3 PH
