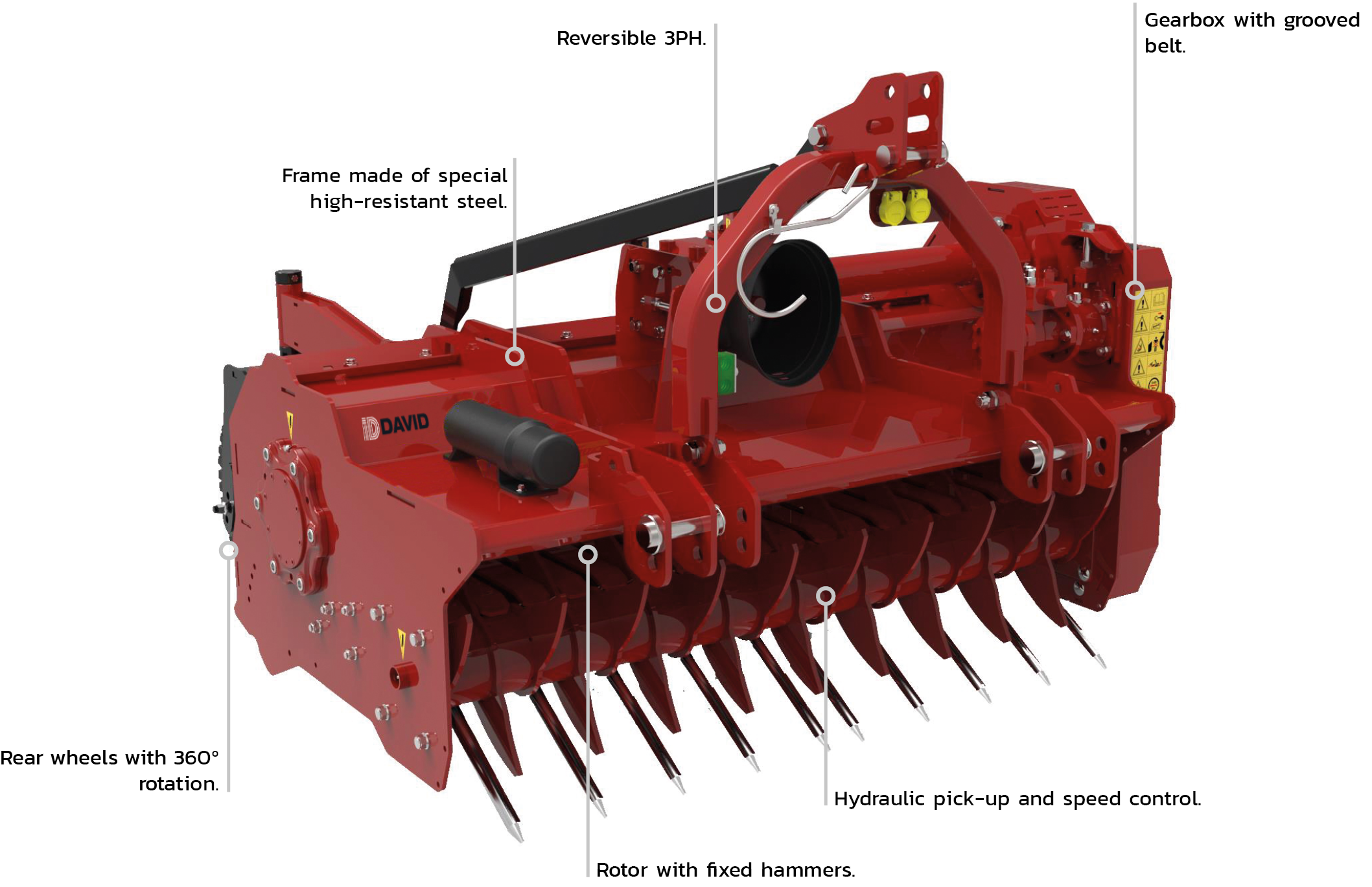

Strong points

Double 3PH
Frame in high resistant steel
Fixed height adjustable rear wheels
Rotor with fixed hammers
Double hydraulic pick-up and speed control
Gearbox with grooved belt

General description

Patended mowers with double pick-up are machines intended for mowing vineyard prunings, orchard, almonds, olives…

They have a special rotor that allows to work at very high speeds, tripling conventional mowers with rear screen feeding system. Thanks to its perfectly positioned and dimensioned double pick-up, a very stable and uninterrupted feed is achieved. They are also very drive-friendly and compact. All these details make them the fastest and most efficient pruning mowers on the market today.

MORE INFORMATION

Technical information

Standard equipment

  • Transmission driven by belts (XPB)
  • Double 3PH
  • High strength steel chassis
  • Double hydraulic pick-up and speed regulator
  • Gearbox with free wheel (1″3/4 – Z6)
  • Rotor Ø457 with oscillating hammers
  • Mulching system with open chamber
  • Rear fixed wheels
  • Transmission at 540 rpm (optional 1000 rpm by inversion of pulleys with DS system)
  • PTO Bondioli G8
Reference Description Ø Cut
Rotor
X L W H
mm m mm kg Hp mm mm mm
TD-FAST-110 Mower with “DOBLE PICK UP” for Orchard 14 + 14 540 1,1 : 567: 567 770 60 1320 1903 1266
TD-FAST-130 16 + 16 540 1,3 : 667  : 667 850 70 1520 1903 1266
TD-FAST-150 20 + 20 540 1,5  : 767 : 767 900 80 1720 1903 1266
TD-FAST-180 22 + 22 540 1,8   : 917  : 917 1040 90 2020 1903 1266
TD-FAST-200 26 + 26 540 2 : 1017   : 1017 1120 100 2220 1903 1266

Some accesories

Protective side flaps

Double free wheel and double head Group

Branch lifter

Hammer + screws + nut
