Strong points

Synchronized hydraulic extensions, without joints and mechanisms (not available in fix models)
“2 in 1” Radial and parallelogram system in row weeders
Multiples accessories available for both radial and parallelogram movement
Adjustable self-supporting height sensor
Elbow arms at the ends
Same distance between arms with independent working width
Same distance between arms with independent working width
Fast and easy installation to any tractor
Strong frame and robotic welding

General description

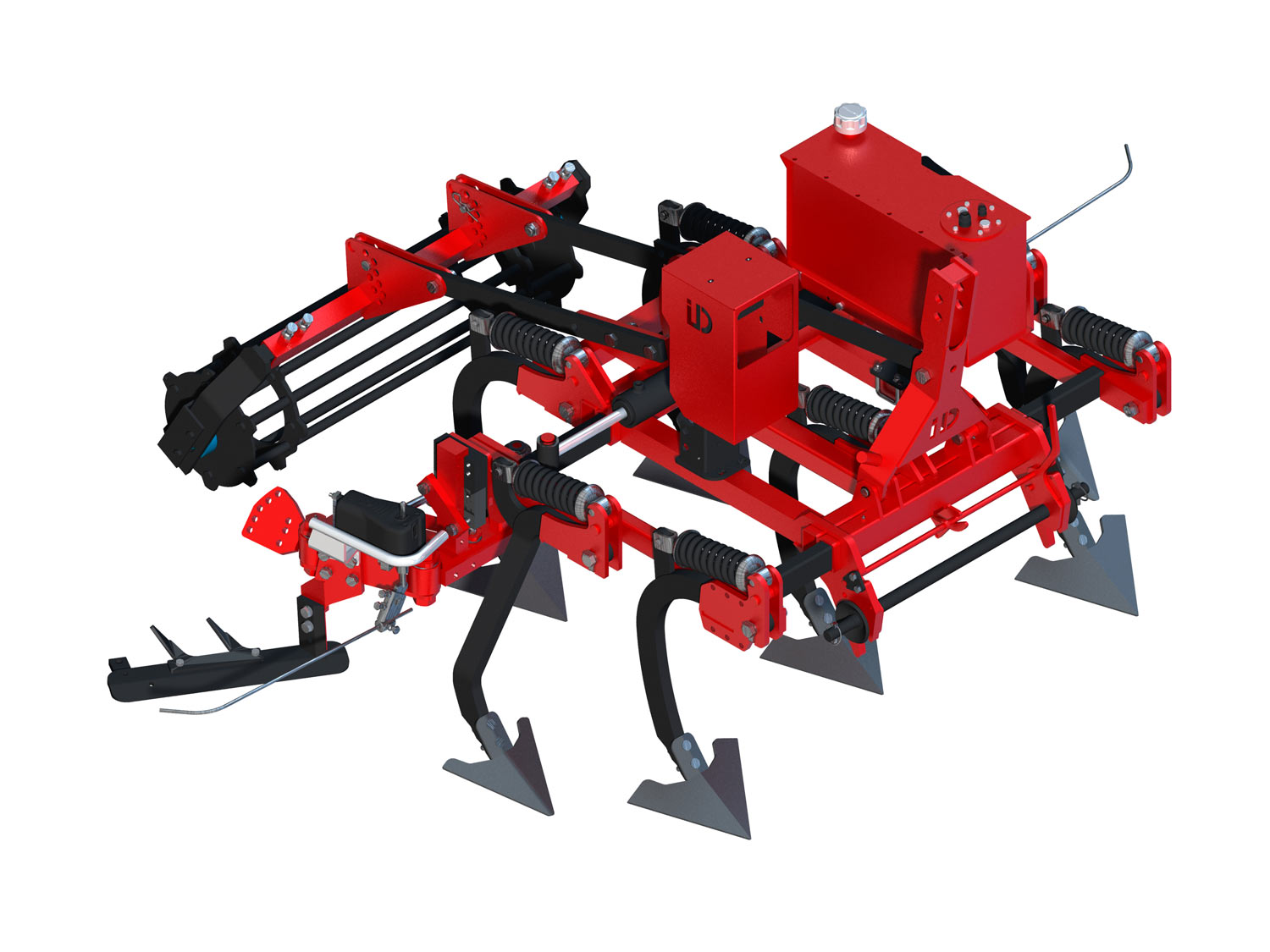

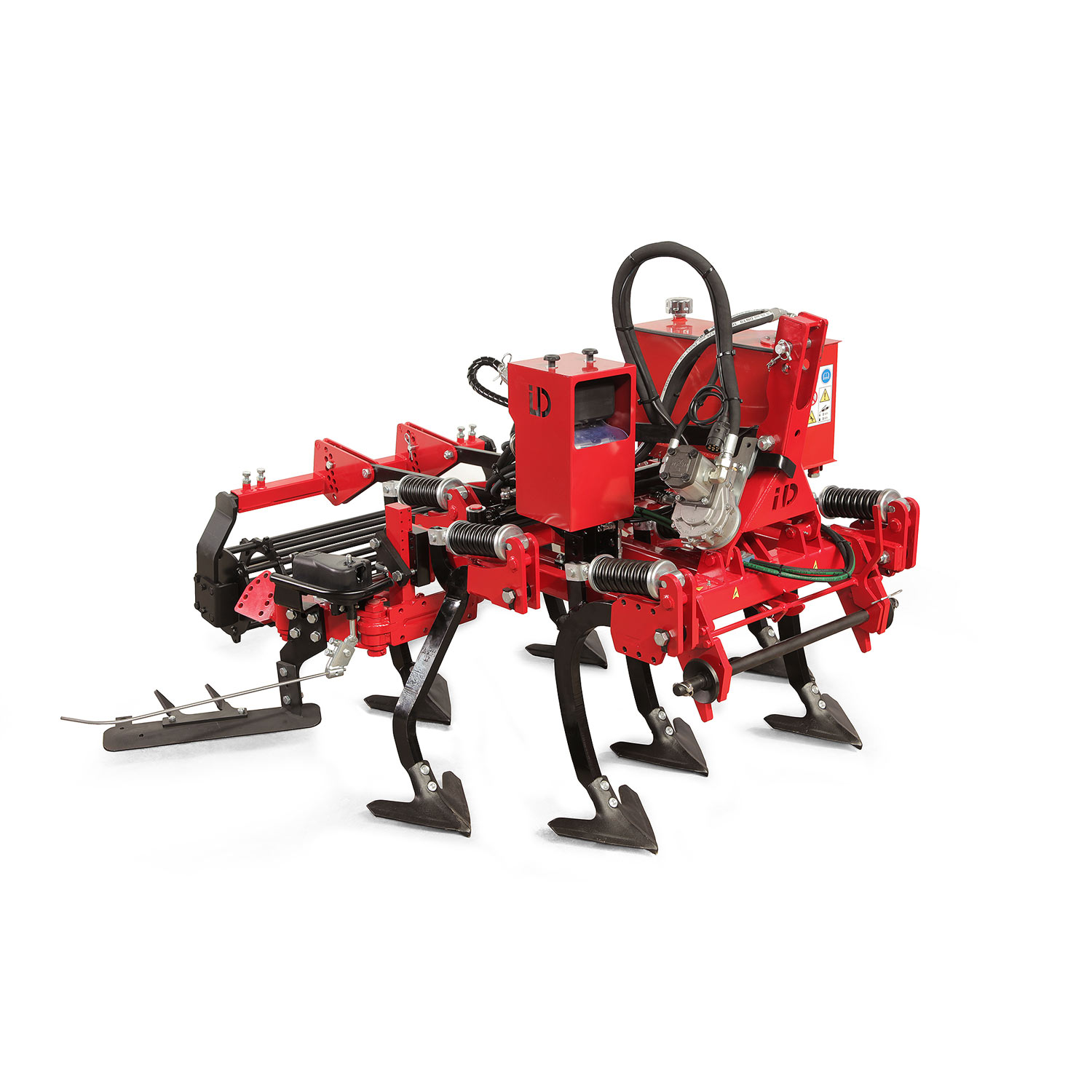

These Semichisel Cultivators, to be connected to 3 rear points of any tractor, are specially designed for the control  of weeds between plants and between rows (e.g. vineyards and orchards). Equipped with 1 or 2 in-row electrohydraulic weeders driven by a hydraulic power unit and controled by a control box installed in the tractor cab, have been developed for working around the plant even with a very small size (from 1 cm diameter of plant trunk). The use of different tools is possible, allowing both surface work without earth removal and deep work up to a working depth of 20 cm. The equipment is controlled by an adjustable sensing rod, equipped with an electronic inductive sensor. The system combines a parallelogram displacement with a radial movement, that provides the equipment an high accuracy and at the same time an high tolerance allowing deviations higher than 30cm in the plants line, or in the tractor trajectory. Allows working speed up to 12 km/h. The arms particular disposition allows to work always at the same distance between arms whether the cultivator is totally extended or folded, avoiding obstructions with grass or weeds. Its reinforced structure with hydraulic extensions and its special arms allow working with different kinds of plough tools up to a working depth of 25 cm.

More information

Technical information

MANUAL EXTENSION

Standard equipment

  • Electric controls in cabin
  • Anti-shock sensor protector
  • Arm kit + Spring + Plough blade David by Bellota
  • Hydraulic pressure regulator
  • Electro hydraulic in row weeder
  • Manual extension of in row weeder
  • Tool kit for sensor regulation
  • Arm “D” and Plough blade to weed manufactured in boron steel
  • Quick connect kit for power tools
  • Security system under damages
  • Standard boron steel plow blade “Golondrina” type, hardness 50Hrc
  • Adjustable rear roller in height and width
  • Independent hydraulic power unit 30L (C1)
  • Quick attachment

Reference

Description

 Brazos    Science-Weight-icon tractor-1

L

W

H

cm

m

Kg

Hp

m

m

m

CXF-2-IA-D

Fix cultivator Manual extension 1 in row weeder

49

2

≥ 1,10

315

20

1,15

0,52

1,20

CXF-3A-IAC-D

55

3

≥ 1,40

343

25

1,57

0,95

1,27

CXF-5-IA-D

5

≥ 1,80

425

50

1,67

1,07

1,27

CXF-2-IA-P

Fix cultivator Manual extension 2 in row weeder

49

2

1,10 – 1,50

384

25

1,45

0,52

1,20

CXF-3-IA-P

3

1,40 – 1,90

406

30

1,57

0,95

1,27

CXF-5-IA-P

55

5

1,80 – 2,30

485

55

1,67

1,07

1,27

HYDRAULIC EXTENSION

Standard equipment

  • Electric controls in cabin
  • Anti-shock sensor protector
  • Arm kit + Spring + Plough blade David by Bellota
  • Hydraulic pressure regulator
  • Electro hydraulic in row weeder
  • Hydraulic extension to the tractor
  • Tool kit for sensor regulation
  • Arm “D” and Plough blade to weed manufactured in boron steel
  • Quick connect kit for power tools
  • Security system under damages
  • Standard boron steel plow blade “Golondrina” type, hardness 50Hrc
  • Adjustable rear roller in height and width
  • Independent hydraulic power unit 30L (C1)
  • Quick attachment

Reference

Description

 Brazos    Science-Weight-icon tractor-1

L

W

H

cm

m

Kg

Hp

m

m

m

CXH-7-IA-D

Cultivator
Hydraulic extension
1 In row weeder

55

7

≥ 2,00

624

55

1,76

1,33

1,27

CXH-7A-IA-D

7

≥ 2,25

634

60

1,76

1,49

1,27

CXH-9-IA-D

9

≥ 2,25

712

70

1,76

1,56

1,27

CXH-9A-IA-D

9

≥ 2,50

722

75

1,76

1,72

1,27

CXH-11-IA-D

11

≥ 2,80

799

85

1,76

2,28

1,27

CXH-11A-IA-D

65

11

≥ 3,20

809

90

1,76

2,28

1,27

CXH-13-IA-D

13

≥ 375

891

95

1,76

2,77

1,27

CXH-7-IA-P

Cultivator
Hydraulic extension
2 In row weeder

55

7

2,00 – 2,50

687

60

1,76

1,33

1,27

CXH-7A-IA-P

7

2,25 – 2,75

697

65

1,76

1,49

1,27

CXH-9-IA-P

9

2,25 – 2,95

775

75

1,76

1,56

1,27

CXH-9A-IA-P

9

2,50 – 3,20

785

80

1,76

1,72

1,27

CXH-11-IA-P

11

2,80 – 3,50

862

90

1,76

2,28

1,27

CXH-11A-IA-P

65

11

3,20 – 3,90

910

95

1,76

2,28

1,27

CXH-13-IA-P

13

3,75 – 4,45

954

100

1,76

2,77

1,27

Some accesiories

Plow blade

Adapted barb rake

Adjustable rear roller

Rotary brush

Hydraulic 3 point hitch

Pair of front metal wheels

Blades mower

Rotary hoe

Reversible mini disc harrow

Adjustable arm

Blade to weed with right tips

Standard oil cooler
