Strong points

Strong frame and robotic welding
“2 in 1” Radial and parallelogram system in row weeders
Adjustable self-supporting height sensor
Multiples accessories available for both radial and parallelogram movement
Easy sensor adjustment
Overlapped mowers (cut to any working width)
Anti-shock guards
Fast and easy installation to any tractor

General description

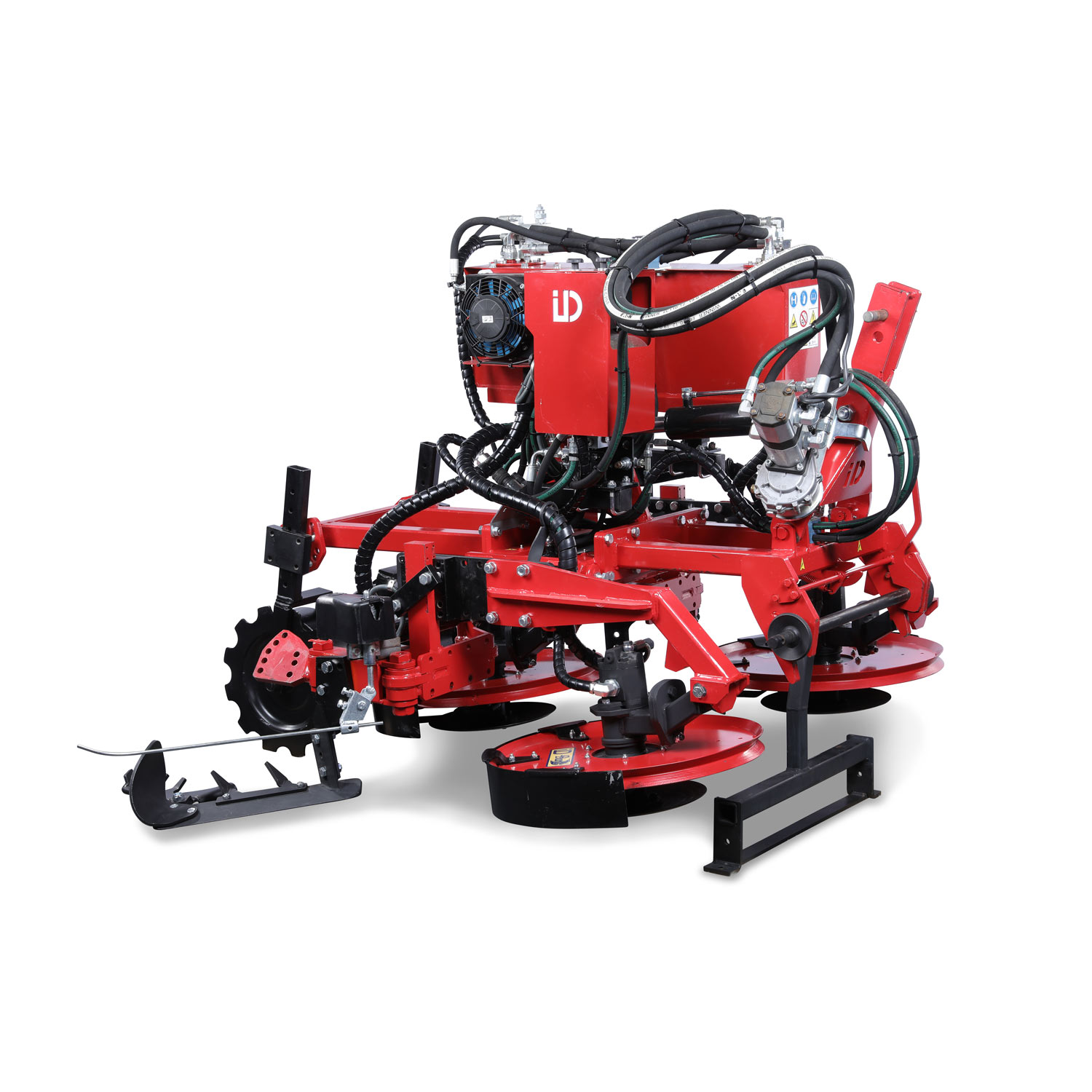

NOT CULTIVATING Chassis, coupled to the rear 3PH of any tractor, is the ideal equipment for weed control between plants in vegetated plantations (e.g. vineyard and orchard) formed in rows and central lines or total cut equipping cutting blades in in-row weeders arms. Equipped with 1 o 2 electro hydraulic in-row weeder , commanded by an hydraulic power unit and controlled by a control box installed in the tractor cab. Developed to work around the plant even with a very small size (from 1 cm diameter of plant trunk). The use of different tools is possible, allowing both surface works without earth removal and deep works up to a working depth of 20 cm. The equipment is controlled by an adjustable sensing rod, equipped with an electronic inductive sensor. The system combines a parallelogram displacement with a radial movement, that provides the equipment a high accuracy and at the same time a high tolerance allowing deviations higher than 30 cm in the plants line, or in the tractor trajectory. Allows working speeds up to 8 km/h.

More information

Technical information

Standard equipment

  • Electric controls in cabin
  • Anti-shock sensor protector
  • Hydraulic pressure regulator
  • Electro hydraulic in row weeder
  • Hydraulic extension to the tractor
  • Tool kit for sensor regulation
  • Arm “D” and Plough blade to weed manufactured in boron steel
  • Quick connect kit for power tools
  • Adjustable pair of metal wheels in height and width
  • Rotary slasher equipped with deflector and floating system
  • Independent hydraulic power unit 50L (C33) with double pump
  • Oil cooler
  • Storage foot
  • Quick attachment

Reference

 Description  L  W  H  A

cm

m

Kg

Hp

m

m

m

m

BIO-XS-IAC-P

Chasis Bio

2 In-Row weeder

Mini

49

1,45 – 2,00

590

50

1,50

0,96

1,25

0,89 – 1,30

BIO-S-IA-P

Small

55

1,85 – 2,50

680

50

2,00

1,35

1,25

1,25 – 1,80

BIO-M-IA-P

Medium

2,45 – 3,20

730

60

2,00

1,80

1,25

1,70 – 2,40

BIO-L-IA-P

Long

100

3,40-4,20

830

60

2,20

2,50

1,25

1,70 – 2,40

Some accesories

Blade to weed with pair tips

Disc harrow without motor to cover

Rotary hoe

Blades mower

Rotary brush

Hydraulic 3 point hitch
