Strong points

Turning draw bar (allows turns up to 90º)
Strong frame and robotic welding
Height adjustable front support foot
Hydraulic and parking brake
Working depth adjustment screw
Hydraulic adjustment of working depth and transport height
Torque limitator in the hydraulic system against drive chain’s overstress
Lights signaling bar

General description

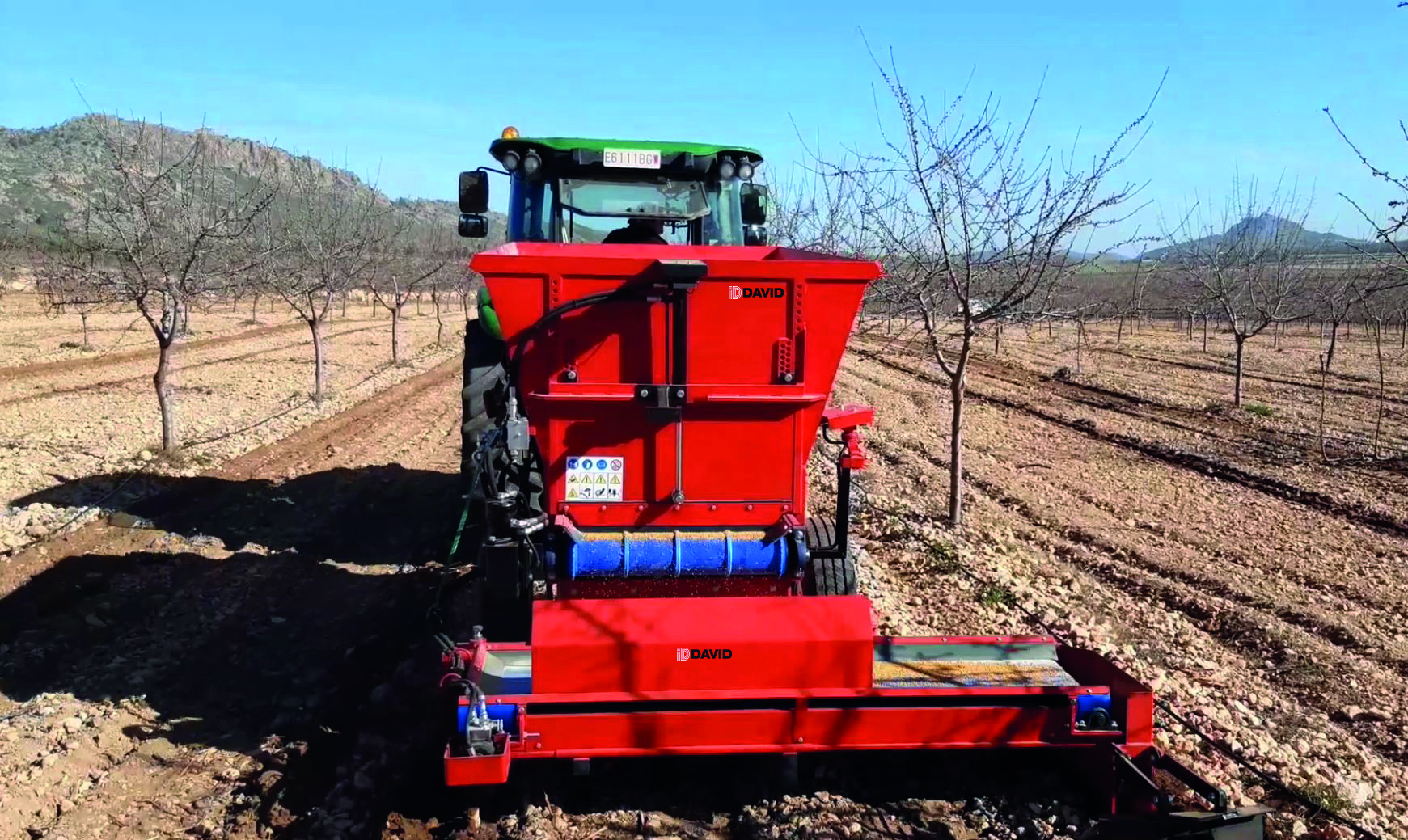

TRAILER FOR MINERAL FERTILIZER

Trailer for mineral fertilizer of high performance granulated fertilizers, dragged and driven by means of a tractor, that allows to perfectly dosage the product, either superficially (spread on the ground) or located underground. For this there are different accessories that allow you to distribute the chosen fertilizer according to your needs depending on your farm.

More information

Technical information

Standard equipment

  • Hydraulic parking brake
  • Working depth adjusting pin
  • Hydraulic adjustment of working depth and transport height
  • Torque limitation security valve on the driving belt
  • Hydraulic driving belt speed regulator (normal and inverted gear)
  • Lights signaling bar
  • Rear door (automatic opening and closing)
  • 4-ply conveyor belt with triple guide
  • Standing support foot adjustable in height
  • Turning draw bar (allows turns up to 90º )
Reference Description   X  Hopper Control
Hp Lane width kg  Type Number Type
DEF-4525-T Fertilizer 2,5m3 45 1,5 2500  Standard 4 Direct to tractor
DEF-8050-T Fertilizer 5m3 80 2 5000
DEF-4525-D Fertilizer 2,5m3 45 1,5 2500 Standard

2 Control unit
DEF-8050-D Fertirlizer 5m3 80 2 5000
DEF-4525-E Fertilizer 2,5m3 45 1,5 2500 Standard

2 Electrical cabin
DEF-8050-E Fertilizer 5m3 80 2 5000

QUICK COUPLING.  THIS OPTION ALLOWS THE MACHINE TO BE CONNECTED AND DISENGAGED AUTOMATICALLY (E.R.I.)

DEF-4525-ERI Fertiler 2,5m3 45 1,5 2500  Standard

2 Quick coupling
+
DEF-8050-ERI Fertilizer 5m3 80 2 5000
Model m3 Maximun load tire L H
(Max. – Min)
A B
kg Ø m m m m
DEF-4525 2,5 2500 11.5/80×15,3” 855 3,41 2,00 – 2,60 0,40 1,45
DEF-8050 5 5000 11.5/80×15,3” 855 4,62 2,00 – 2,65 0,43 1,80

Some accesories

Sieve with holes

Ladder and platform

Carrier chassis with four jets

Hopper and bottom in stainless steel

Disc spreader

Simple subsoiler

Doble subsoiler

Subsoiler with discharge belt

Side discharge belt

Double Side Belt

Furrows cover

Camera + color screen 8″
